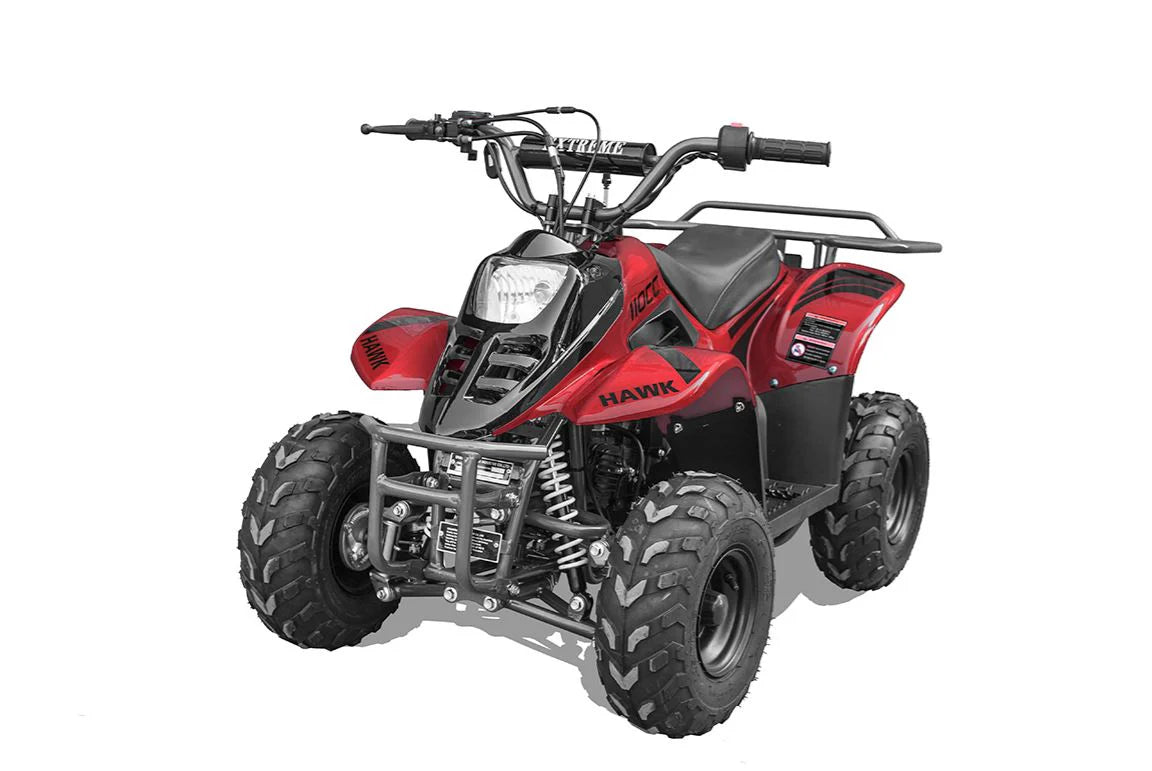

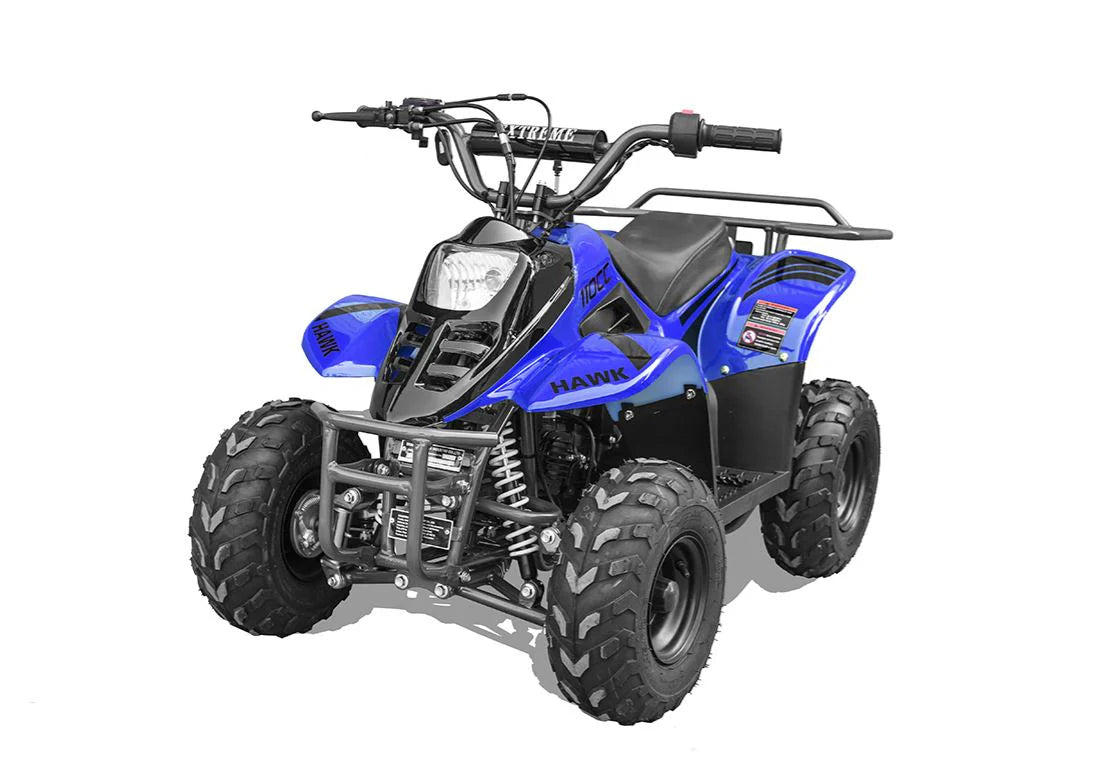

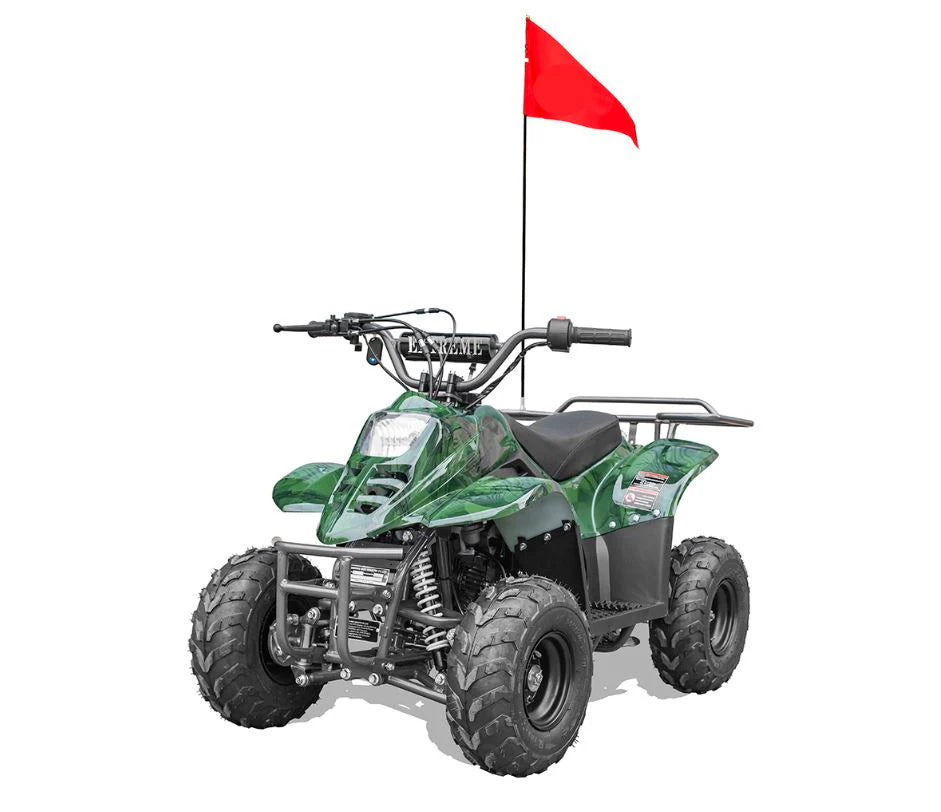

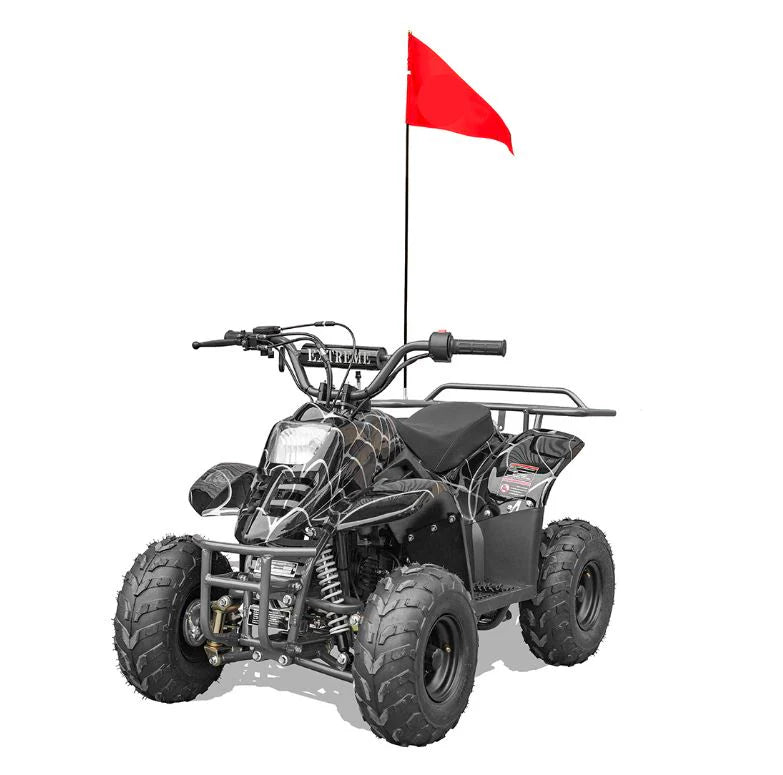

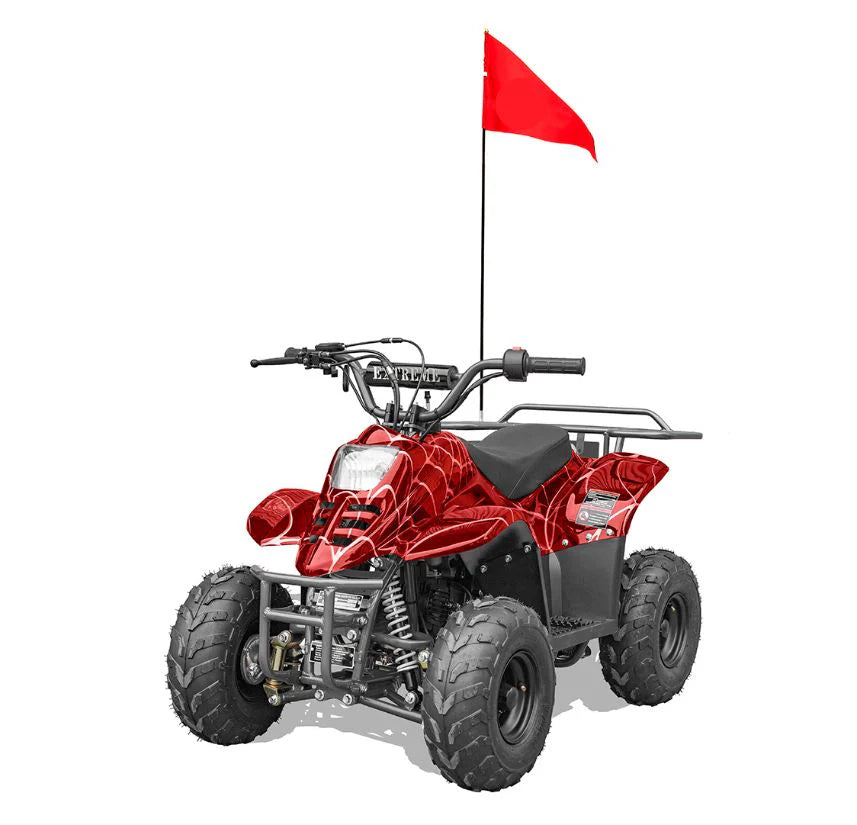

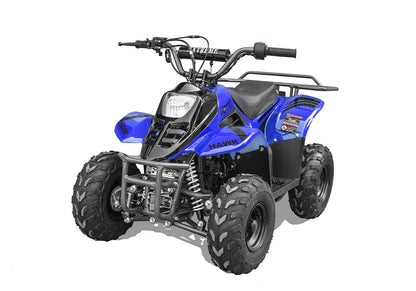

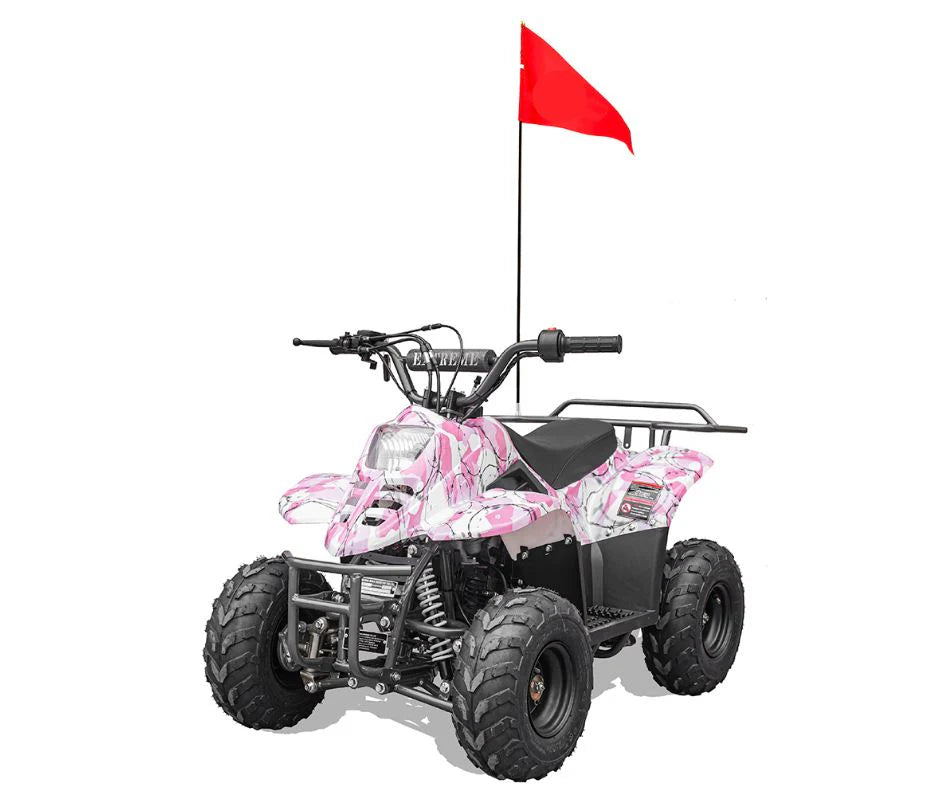

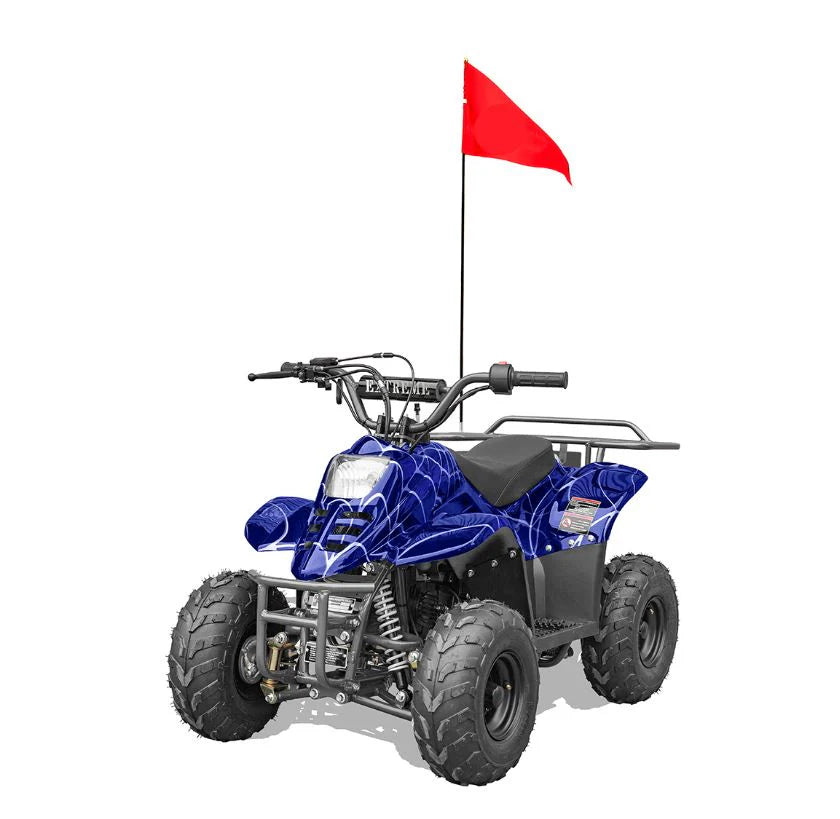

The Coolster ATV-3050C all-terrain vehicle is designed specifically for off-road fun. Powered by a dependable 110CC 4-stroke, air cooled engine, the vehicle features durable double a-arms, shock-absorbent suspensions, and light handling. Perfect for beginners and younger riders.
The Consumer Product Safety Commission (CPSC) adheres to a strict age-group guideline to ensure the utmost safety of riders. Before operation of a vehicle, please check that the user falls within the appropriate age groups as listed below:
A. For all Coolster 110cc ATVs, riders must be 16+
B. For all Coolster 125cc ATVs, riders must be 16+0
C. For all other Coolster vehicles, the recommended age for riders should be 16+
|
Model Number:
|
ATV-3050C
|
|
Engine Type:
|
Single cylinder, 4-stroke, air-cooled
|
|
Displacement:
|
107cc
|
|
Max Torque:
|
6.9.N.m/6,000r/min (N.m/r/min)
|
|
Max Power:
|
4.7kW/8,500r/min (N.m/r/min)
|
|
Bore Stroke:
|
52.4 x 49.5mm
|
|
Ignition:
|
CDI
|
|
Starting System:
|
Electric
|
|
Battery:
|
12V, 4Ah
|
|
Clutch:
|
Automatic
|
|
Transmission:
|
Chain
|
|
Brakes Front/Rear:
|
Hub/hydraulic disc
|
|
Tires Front/Rear:
|
145/70-6 145/70-6
|
|
Fuel Capacity:
|
2.2L
|
|
Weight:
|
(G.W./N.W) 154 lbs/176 lbs
|
|
Max Load:
|
60kg
|
|
Wheelbase:
|
800mm
|
|
Dimensions:
|
1230 x 740 x 800mm
|
|
Height to Seat:
|
550mm
|
|
Min. Ground Clearance:
|
70mm
|
